"Introduction to CNC Turning Programming "

What is CNC Turning?

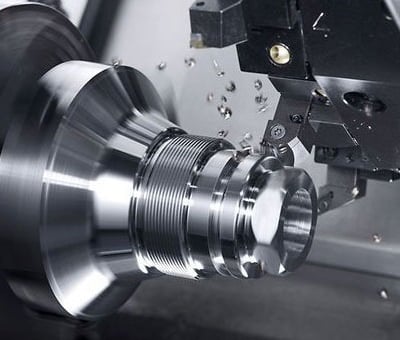

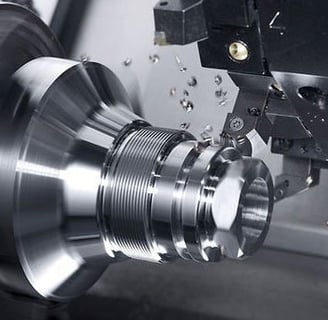

CNC (Computer Numerical Control) turning is a machining process used to produce cylindrical parts by removing material from a rotating workpiece with a cutting tool. It's essential in manufacturing for creating precise and complex components efficiently.

History and Evolution of CNC Turning

CNC turning has evolved from manually operated lathes to sophisticated computer-controlled machines. Early lathes required skilled operators to manually control the cutting tools. The introduction of CNC technology revolutionized this process by automating movements and allowing for greater precision and repeatability.

Understanding CNC Turning Machines

Components of a CNC Turning Machine

CNC turning machines consist of several key components:

• Bed: The base of the machine that provides stability.

• Spindle: Rotates the workpiece.

• Turret: Holds multiple cutting tools and rotates to change tools.

• Control Panel: Interface for programming and controlling the machine.

Types of CNC Turning Machines

There are various types of CNC turning machines:

• Horizontal Turning Centers: Spindle axis is horizontal. Ideal for long workpieces.

• Vertical Turning Centers: Spindle axis is vertical. Suitable for large, heavy workpieces.

• Single Spindle Machines: One spindle for holding the workpiece.

• Multi-Spindle Machines: Multiple spindles for increased productivity.

CNC Turning Programming Basics

Introduction to G-Codes and M-Codes

G-codes and M-codes are the languages of CNC programming:

• G-Codes (Geometric Codes): Control movements and operations (e.g., G00 for rapid positioning, G01 for linear interpolation).

• M-Codes (Miscellaneous Codes): Control auxiliary functions (e.g., M03 for spindle start, M06 for tool change).

Setting Up the Workpiece

1. Mounting the Workpiece: Secure the workpiece in the spindle using a chuck or collet.

2. Setting Zero Point: Define the starting point (origin) for the program.

3. Choosing the Tools: Select appropriate cutting tools and install them in the turret.

Creating the Program

Here’s an example of a simple CNC turning program:

• .O1000: Program number.

• G21: Set units to millimeters.

• G00: Rapid positioning move

• G01: Linear interpolation move.

• X and Z: Coordinate positions.

• F0.2: Feed rate (0.2 mm/rev).

• M30: End of program.

Advanced CNC Turning Programming Techniques

Tool Path Optimization

Optimizing tool paths reduces cycle time and improves accuracy. Key strategies include:

• Minimizing Non-Productive Moves: Reduce rapid moves and tool changes.

• Efficient Tool Usage: Use tools for multiple operations when possible.

• Consistent Cutting Conditions: Maintain uniform cutting speed and feed rate.

Use of Subroutines and Macros

• Subroutines: Reusable code blocks for repetitive tasks.

• Macros: Custom commands to simplify complex operations. Example:

plaintext

N10 M98 P1000 (Call subroutine O1000) O1000 N10 G01 X20 Z-50 N20 G00 X0 N30 M99 (Return from subroutine)

Advanced Cutting Techniques

• Threading: Creating screw threads with precise pitch and depth.

• Grooving: Cutting narrow slots or grooves.

• Parting Off: Separating a finished part from the raw material.

Troubleshooting and Common Issues

Common Programming Errors

1. Syntax Errors: Incorrect G-code/M-code formatting.

2. Coordinate Errors: Wrong coordinate values leading to tool crashes.

3. Tool Selection Errors: Using incorrect tools for specific operations.

Machine and Tooling Issues

1. Machine Calibration: Ensuring the machine is correctly calibrated to avoid inaccuracies.

2. Tool Wear: Regularly inspecting and replacing worn tools.

3. Vibration and Chatter: Adjusting cutting parameters to reduce vibrations.

Industry Applications and Trends

CNC Turning in Different Industries

CNC turning is used in various industries:

• Aerospace: Manufacturing turbine blades, engine components.

• Automotive: Producing gears, shafts, and other precision parts.

• Medical: Creating implants, surgical instruments.

Future Trends in CNC Turning

• Automation: Increasing use of robots for loading/unloading.

• Industry 4.0: Integrating IoT and AI for smart manufacturing.

• Emerging Technologies: Advancements in cutting tools, materials, and machine design.

Conclusion

Recap of Key Points

• CNC Turning: Critical manufacturing process for cylindrical parts.

• Programming: Involves G-codes, M-codes, and tool path optimization.

• Applications: Used across aerospace, automotive, medical industries.
